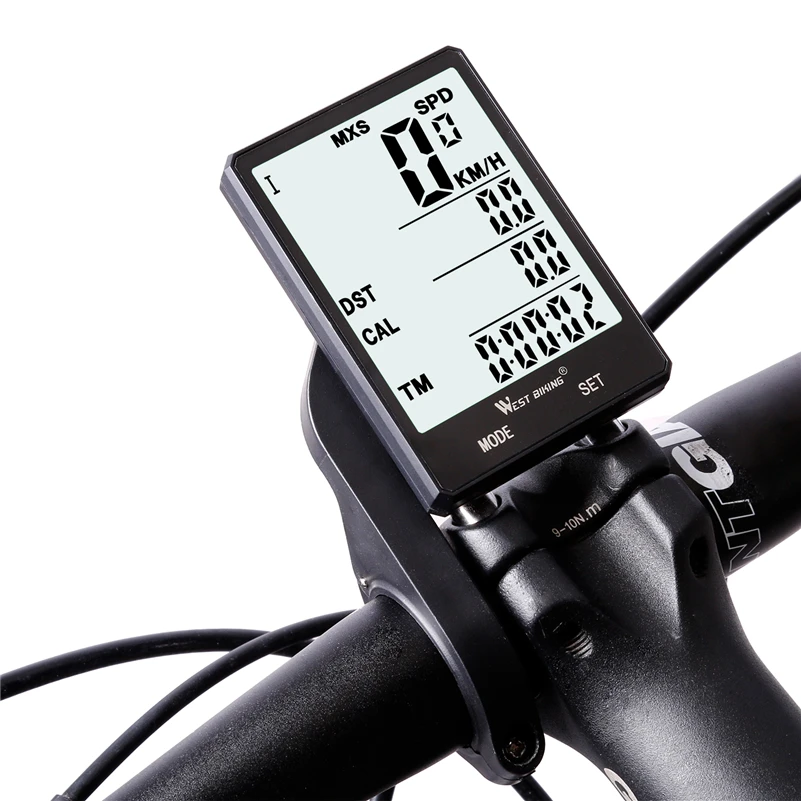

Bike Computer Name WEST BIKING 2.8" Large Screen Bicycle Computer Wireless Wired Bike Computer Rainproof Speedometer Odometer Stopwatch for Cycling

Instruction

(Mode-Left key, Set-Right key)

(Please tear the screen protective film first, and read step by step)

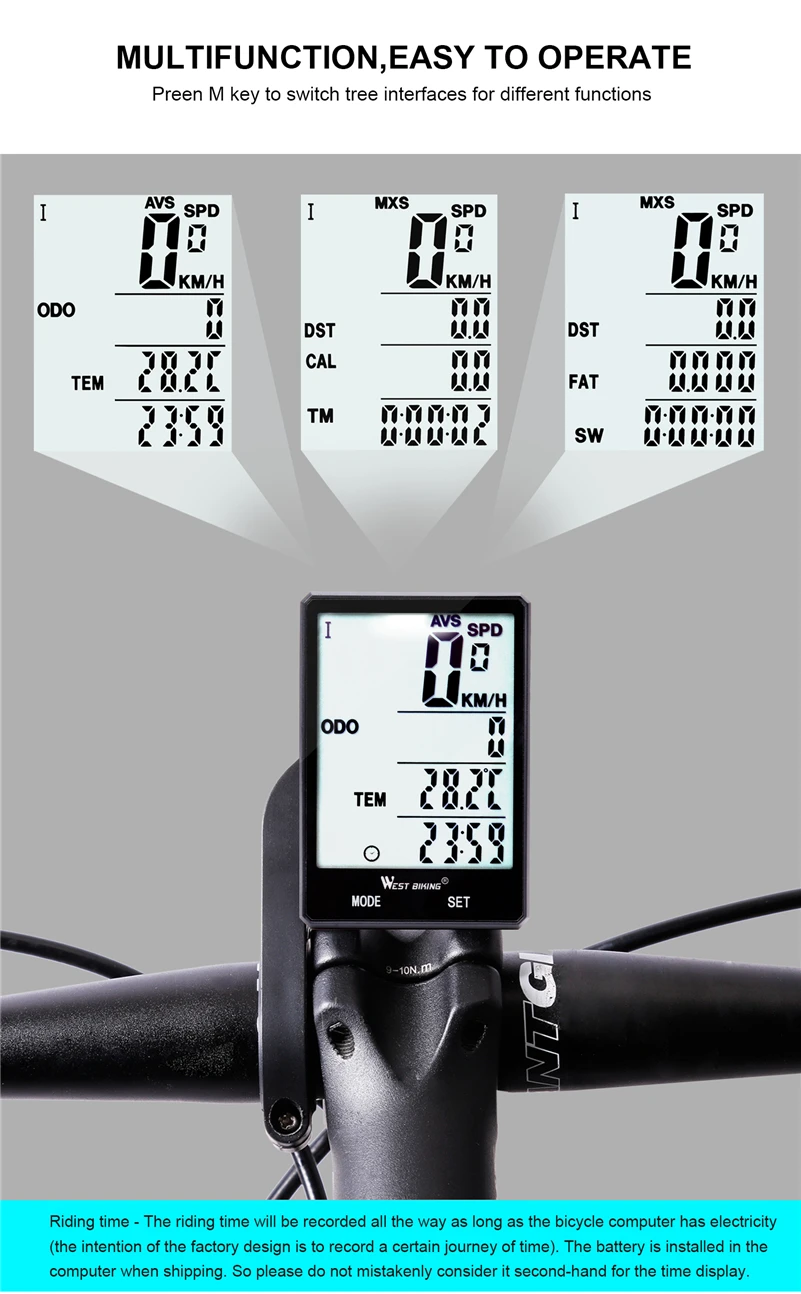

20 Functions

- Memory functions

- Speed tendency (3 km per grip)

- Two bicycle using

- SPD Current speed (0-99.9)

- ODO Odometer

- DST Trip distance

- MXS Max speed

- AVS Average speed

- TM Trip riding time

- CLOCK 12H/24H

- SW Stop watch

- CAL Calories Level

- FAT Fat burn measurement

- TEM Temperature

- Backlight

- Low power indicator

- Maintenance alert

- KM, M selectable

- Setting tyre circumference and ODO

- Auto off

Battery Installation

Remove the battery cover and put a piece of CR2032 battery into the case. Notice: Positive pole (+) should be set upwards. Then cover the the battery cover and screw down.

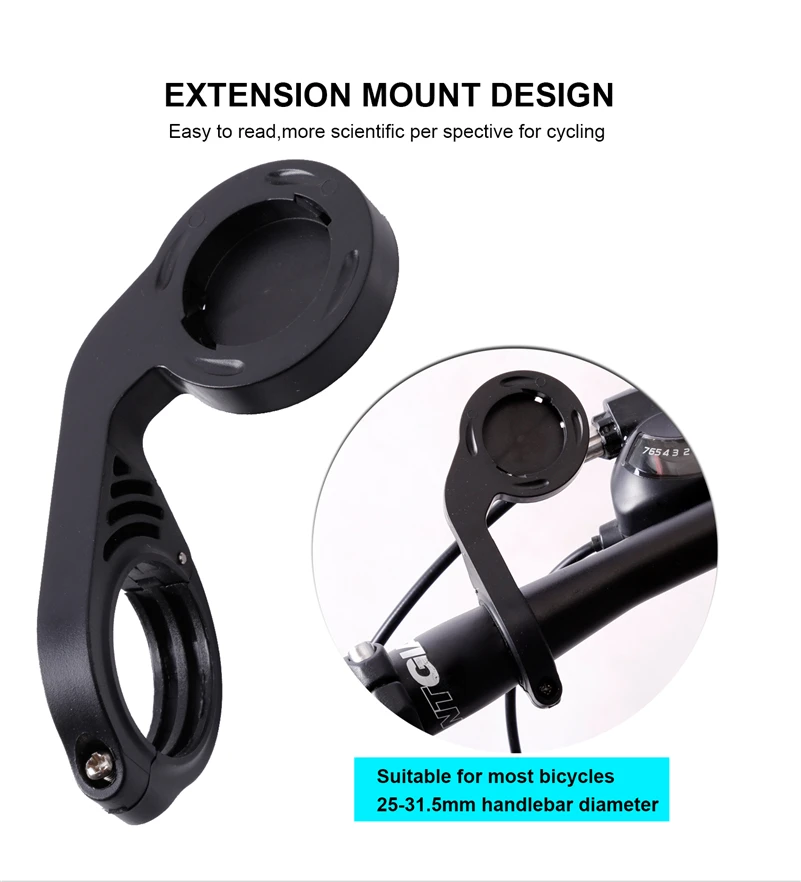

Pedestal Installation

In the accessories pack there has a strap which can be used to fasten the Seat onto the handlebar, as well we can use the back-up plate to fasten it.

Sensor and Magnet Installation

Install the sensor onto the front fork of bicycle, and the magnet is installed onto the steel wire at the same side of wheel. Sensor can be underlaid with back-up plate and use the strap to fasten onto the front fork.

It needs to be installed in 60cm distance from the computer, as the picture shows. Adjust the comparative location of Sensor and Magnet. The plane must face to the inductor. Keep the space to be 1.5mm.

Magnet cannot be set to the center of Sensor face-to-face, itrsquos better with the head or tail of Sensor

Wheel Perimeter Setting

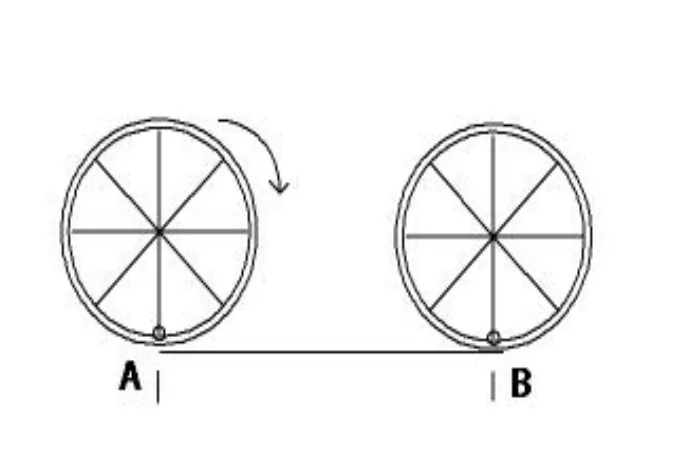

Input the circumference from 0 mm to 999 mm. You can alsomeasure it by yourself by the following ways: First make a mark on the ground when the nozzle is on the below.

Then make the wheels run once the gas mozzle on the below again please mark. And measure the distance between the two marks you can get your wheel perimeter.

If the distance is 1615 then you should input 1615. (You can also measure the diameter and multiply 3.14 to get the perimeter.)

 Setting Steps

1 Put the battery on - Setting KM, M, press SET button to choose and press MODE button to confirm. 1 mile = 1.609 km.

2 Wheel I perimeter setting, the screen shows 2060 (perimeter is 2060 mm). Setting the flashing number from right to left, press SET button to change the number and press MODE button to confirm.

3 Wheel II perimeter setting, the screen shows 1860 ( perimeter is 1860 mm). Setting the flashing number from right to left, press SET button to change the number and press MODE button to confirm.

4 Weight setting. Screen shows K065 and ldquoKrdquo flashing.First

choose Kilogram K or Pound L then setting the value. Press

SET button to choose and press MODE button to confirm.

5 Bicycle I Maintenance setting, screen shows 0200, setting from right to left. Press SET button to change the flashing number and press MODE button to confirm.

6 Bicycle II Maintenance setting, screen shows 0800, setting from right to left. Press SET button to change the flashing number and press MODE button to confirm.

From now on you have finished the setting, and you can

ride your bike. Default bike is bike I. If you want to reset

please press left and right key for 6 seconds at the same

time, and the steps are the same with above.

ODO, CLOCK and TEM unit Setting

Under ODO ndash TEM - CLOCK mode, press SET button ODO flashing, press SET button again TEM flashing, press SET button again Clock icon flashing. When ODO flashing, press SET button for 3 seconds to set ODO value. Press the SET button change the number, press MODE button to confirm it, set from right to left number.

When TEM flashing, press SET button for 3 seconds to set the temperature unit. Press SET button to change ℃/℉, press the MODE button to confirm it. When Clock icon flashing, press SET button for 3 seconds to set the date. Press the SET button to change time number, press MODE button to confirm it. Then press SET button to change 12H /24H, press MODE button to confirm it. Press SET button to change time number, press MODE button to confirm it.

DST,AVS, MXS, TM, CAL and FAT clear to zero

Under DST ndash CAL - TM or DST ndash FAT - SW mode, press SET button for 5 seconds to clear DST, AVS, MXS, TM, CAL and FAT value to zero.

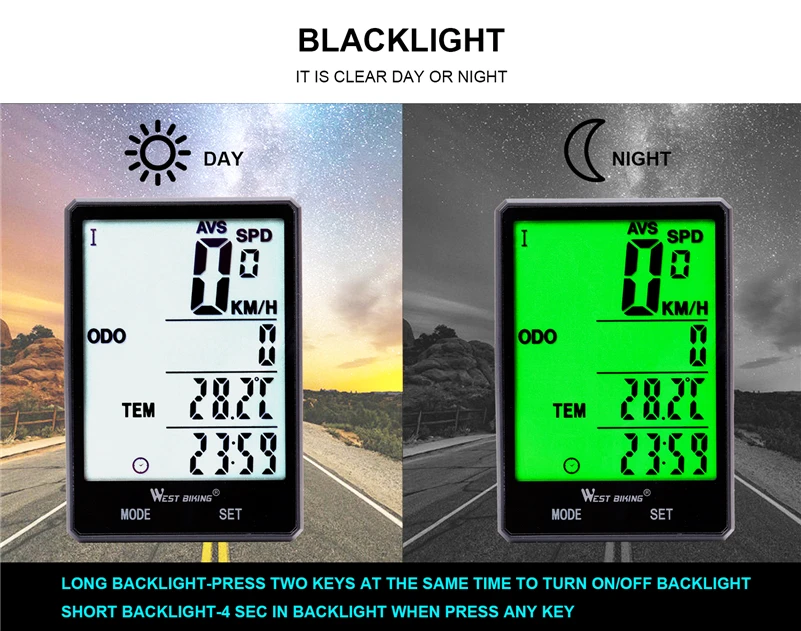

Backlight

During 17 :00-07 :00, screen will be lighted up for 4 seconds

when you press any key. But if you want the screen always

lighting at any time, press both SET and MODE button for 1

seconds to keep the screen always lighting up. Press SET and

MODE button for 1 seconds again to cancel it .

Stop watch

Under DST ndash FAT - SW mode, press SET

button to shart Stop watch press again to paus,

then press MODE button to clear tozero.

It ranges from 0:00:00 to 9:59:59.

Auto off

After 300 seconds no signal inputs the computer, the screen will turn into OFF state with only clock and date display. It will be restart when you press any button.

Maintenance Alert

Under ODO ndash TEM - CLOCK mode, when distance value reaches to the maintenance setting value, the spanner icon will be flashing in the screen，press the SET button for 3 seconds to cancel it.

Current speed

Screen will show current speed only when you are riding. Precision is 0.1KM/h. Range at 0~99.9 KM/h (M/h).Screen shows MXS or AVS when you are not riding

Speed tendency

Screen will show a tendency when you are riding. Speed up, it goes high. Speed down, it goes short.

Low power indicator

Once the battery voltage decreases to 2.5 V, the blank battery icon will be flashing on screen, that reminds you to change a new battery.

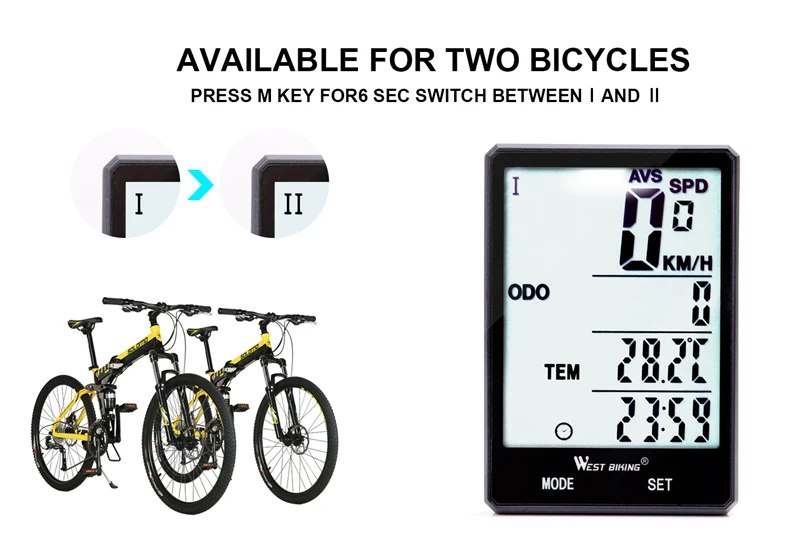

Two Bicycle I / II using

Under any mode press MODE button for 6 seconds to change to another bicycle mode.

Resetting

Press both MODE and left Buttonfor 6 seconds to reset KM /

M, wheel perimeter/ weight / maintenance.

Memory function

All cycling and setting data will be kept after changinng a battery.

Because of this, the computer havenrsquot cleared to zero before sending to you.

​--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

C Mini Style

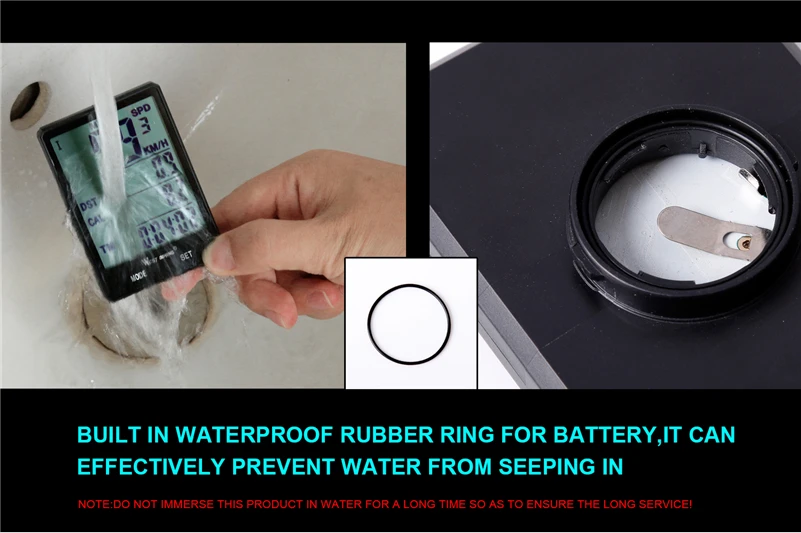

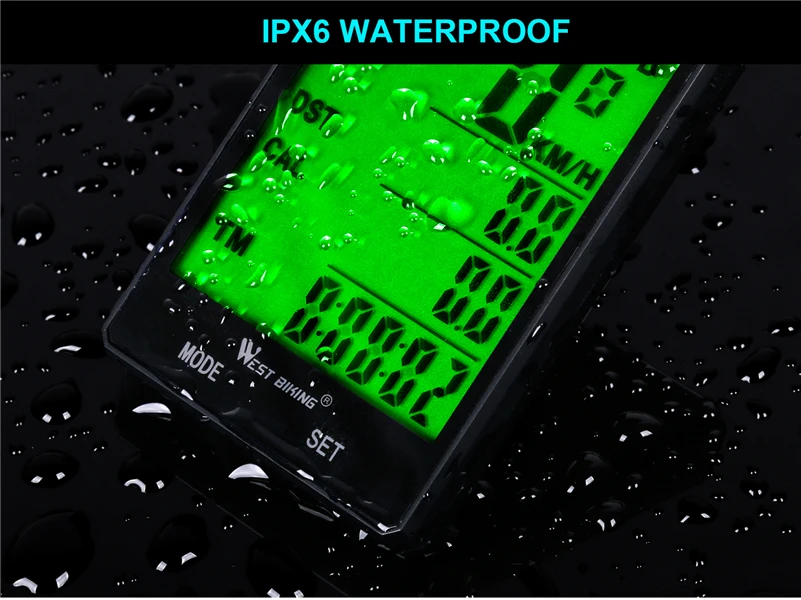

Daily Waterproof

Do not put the product into water or get wet in the rain for a long time. Cover a plastic warp when there is a bad weather.

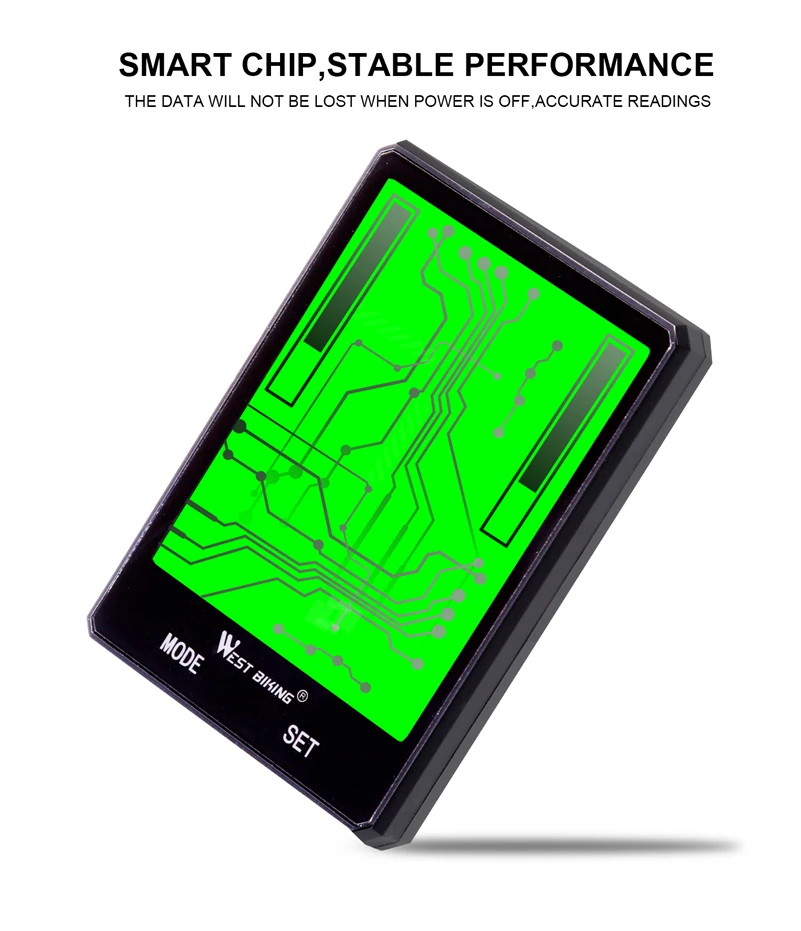

Smart microcircuit, stable function

-Automatic memory and updated every weekly -Powerful microcircuit; more stable function more correct data; longer service life

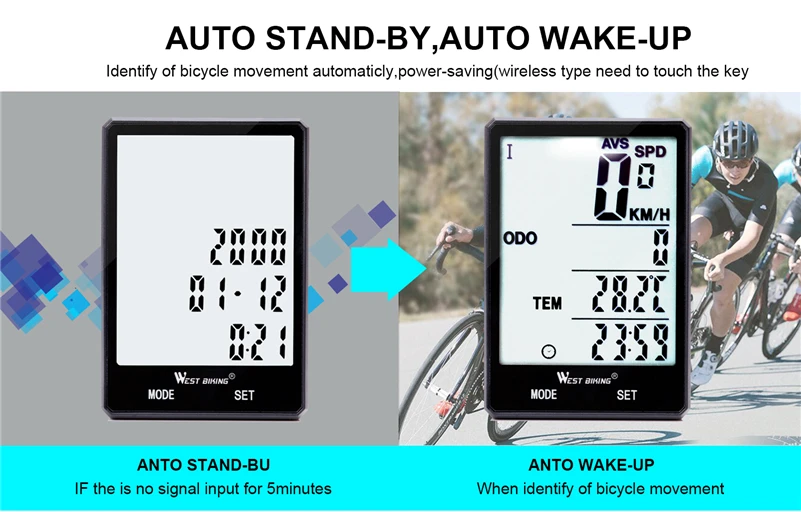

Standby / wake-up automatic

Two backlight colors for your choice!

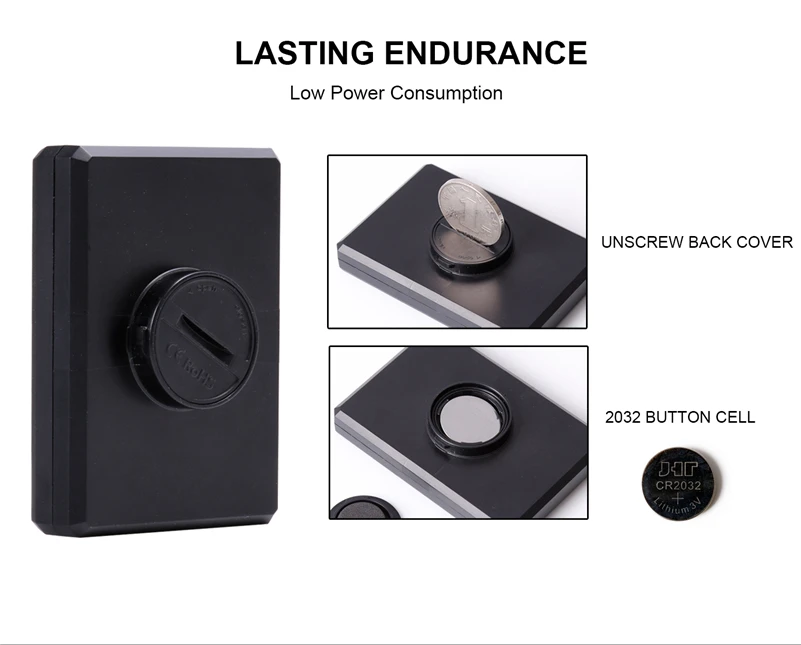

Long battery endurance, low consumption

Only one 2032 button cell, low consumption and long endurance Open the battery cover with a coin Please take out the insulation sheet in the product before using.



Bicycle Computer Installation

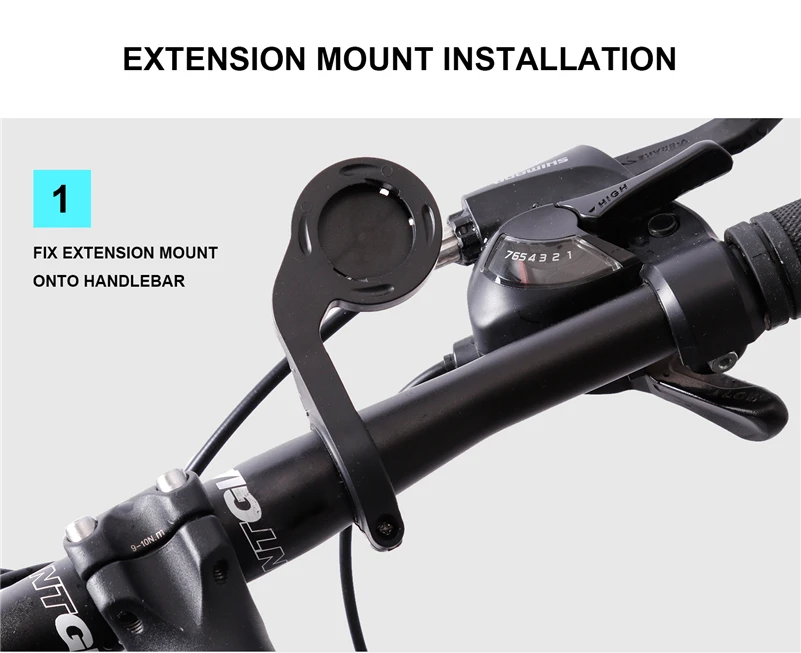

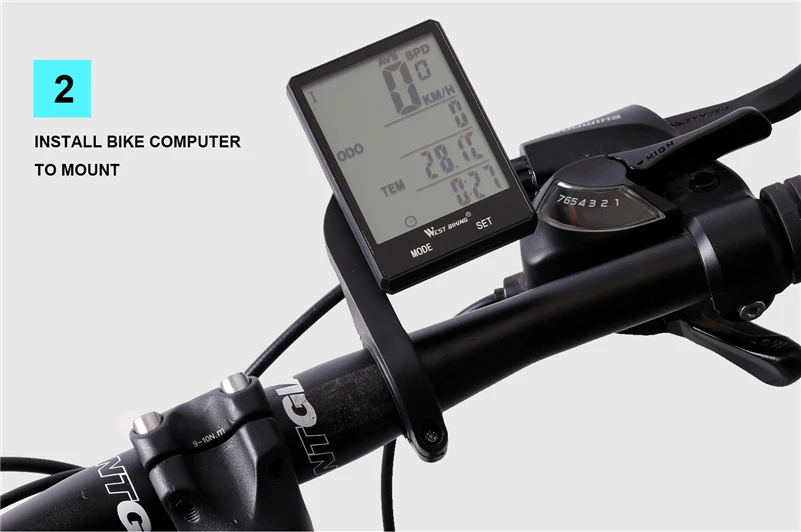

1.Attach the base to the handlebars 2.Fix the monitor to the base 3.Loosely attach the magnet to a spoke 4.Attach the wireless sensor using the wraps 5.Adjust the distance between magnet and sensor to within 3mm 6.Setting date

Distance Between Magnet And Sensor < 3MM Distance < 60CM(Wireless Sensor Fixed On Front Fork)
